Creating manageable virtual machines: Setting up name server

II/ SETTING UP NAME SERVER

We use the omarine.org domain to illustrate. The server has IP address of 192.168.0.1, named omarine.omarine.org. You replace them with your own values when applied in practice.

1. Creating a key to update resource records

There are several ways to create a secure DNS key, we use the following command:

sudo ddns-confgen -r /dev/urandom -k dhcp-key -z omarine.org

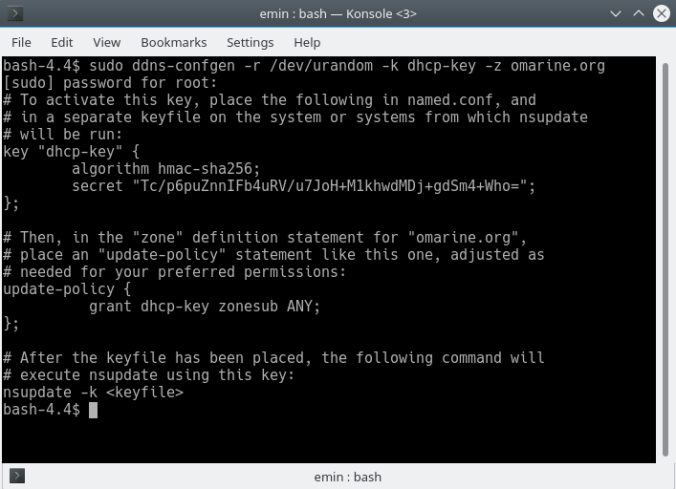

The output looks like this:

Here we have created a key named “dhcp-key”, using the hmac-sha256 algorithm, the secret is “Tc/p6puZnnIFb4uRV/u7JoH+M1khwdMDj+gdSm4+Who=”. This key will be used frequently for the DHCP server to dynamically update resource records. We also use it to dynamically update resource records with the nsupdate command.

We create key file .dhcp-key in the /root directory as follows:

sudo tee /root/.dhcp-key << EOF
key "dhcp-key" {
        algorithm hmac-sha256;
        secret "Tc/p6puZnnIFb4uRV/u7JoH+M1khwdMDj+gdSm4+Who=";
};
EOF

No one can access the /root directory except root. Be more careful, you set mode bits directly on the file:

sudo chmod 400 /root/.dhcp-key

2. Configuring name server

First, we put the key just created above into the configuration file of the name server:

sudo tee -a /srv/named/etc/named.conf << EOF
key "dhcp-key" {
        algorithm hmac-sha256;
        secret "Tc/p6puZnnIFb4uRV/u7JoH+M1khwdMDj+gdSm4+Who=";
};
EOF

Next is to define an acl:

sudo tee -a /srv/named/etc/named.conf << EOF
acl dns-dhcp-nets {
        ! { !localnets; any; }; key "dhcp-key";
};
EOF

In addition to the firewall we allow querying only hosts on a network for which the system has an interface:

sudo sed '/statistics/a \    allow-query { localnets; };' \
         -i /srv/named/etc/named.conf

Now add some zones.

Add zone “localhost”:

sudo tee -a /srv/named/etc/named.conf << EOF
zone "localhost" {
        type master;
        file "pz/localhost.db";
};
EOF

Add zone “omarine.org”:

sudo tee -a /srv/named/etc/named.conf << EOF
zone "omarine.org" {
        type master;
        file "pz/omarine.org.db";
        allow-update { dns-dhcp-nets; };
};
EOF

Add reverse zone “0.168.192.in-addr.arpa”:

sudo tee -a /srv/named/etc/named.conf << EOF
zone "0.168.192.in-addr.arpa" {
        type master;
        file "pz/192.168.0";
        allow-update { dns-dhcp-nets; };
};
EOF

Finally, we initialize the zone data files:

sudo tee /srv/named/etc/namedb/pz/localhost.db << "EOF"
$TTL 3D

$ORIGIN localhost.

@     1D     IN     SOA     @     root (
                    2013050101    ; serial
                    8H            ; refresh
                    2H            ; retry
                    4W            ; expiry
                    1D            ; minimum
                    )

@     IN     NS     @
      IN     A      127.0.0.1
EOF


sudo tee /srv/named/etc/namedb/pz/192.168.0 << "EOF"
$ORIGIN .
$TTL 259200     ; 3 days
0.168.192.in-addr.arpa  IN SOA  omarine.omarine.org. adm.omarine.org. (
                                191        ; serial
                                28800      ; refresh (8 hours)
                                7200       ; retry (2 hours)
                                2419200    ; expire (4 weeks)
                                86400      ; minimum (1 day)
                                )

                        NS      omarine.omarine.org.
$ORIGIN 0.168.192.in-addr.arpa.
$TTL 86400      ; 1 day
1                       PTR     omarine.omarine.org.
EOF


sudo tee /srv/named/etc/namedb/pz/omarine.org.db << "EOF"
$ORIGIN .
$TTL 259200     ; 3 days
omarine.org             IN SOA  omarine.omarine.org. adm.omarine.org. (
                                340        ; serial
                                28800      ; refresh (8 hours)
                                7200       ; retry (2 hours)
                                2419200    ; expire (4 weeks)
                                86400      ; minimum (1 day)
                                )
                        NS      omarine.omarine.org.
$ORIGIN omarine.org.
omarine                 A       192.168.0.1
EOF
